Mini Sprint Panhard Style Rear End

600 Mini Sprint Complete Rear End. Panhard Style.

Racer Price: $1,096.82

Availability: Usually Ships in 24 to 48 Hours
Product Code: 600-SU-K3001

Description

600 Mini Sprint Complete 1 7/8" Rear End Assembly. Comes complete with axle tube, axle nuts, spacers, birdcages, and brake rotor. Designed for Panhard style rear end chassis, the XXX 600 rear end assembly is incredibly lightweight and incorporates design features that have been proven at 600 tracks from Washington to Florida and every state in between . Components and axle layout are listed and diagramed below.


Technical Specs

Size: 1 7/8"
Length: 52"
weight: 21.5 pounds


Includes

RH Axle Nut
2” Tapered Spacer
¼” Spacer
3 ¼” Spacer
Sprocket Hub
1” Spacer
Left Hand Panhard Birdcage
1” Spacer
2 3/8” Spacer
4 5/8” Spacer
Rear Axle
2” Spacer
2” Spacer
Brake Hub
1” Spacer
¼” Spacer
Right Hand Panhard Birdcage
4 5/8” Spacer
1” Spacer
¾” Spacer
½” Spacer
½” Spacer
¼” Spacer
1” Tapered Spacer
LH Axle Nut

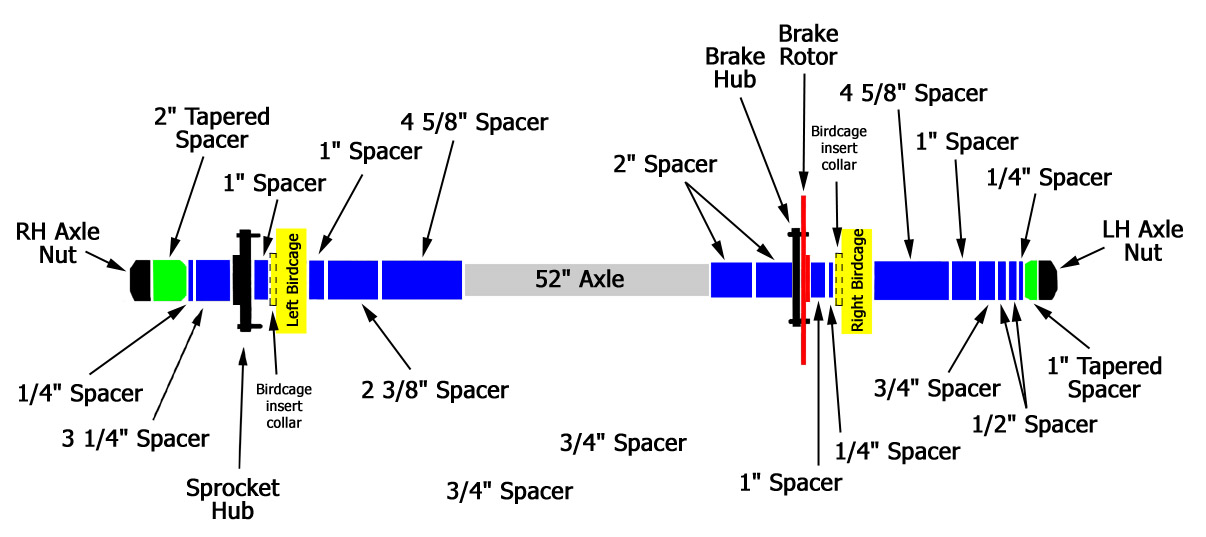

Dimensions

(Click to enlarge)
